Grafikprogrammierung
GUIs mit Java
Thorsten Thormählen
21. Oktober 2019
Teil 2, Kapitel 2
Thorsten Thormählen
21. Oktober 2019
Teil 2, Kapitel 2
Dies ist die Druck-Ansicht.
Weiterschalten der Folien durch die → Taste oder
durch das Klicken auf den rechten Folienrand.
Das Weiterschalten der Folien kann ebenfalls durch das Klicken auf den rechten bzw. linken Folienrand erfolgen.
API | Funktion |
---|---|
Abstract Window Toolkit (AWT) | Basisklassen für GUI-Komponenten, Events und Layouts |
Swing | GUI-Komponenten, veränderbarer Look-and-Feel |
Java 2D | Zeichnen von 2D-Elementen |
Java Accessibility | Unterstützungstechnologien z.B. für Mensch mit Sehbehinderung |
Data Transfer | Cut-and-Paste, Drag-and-Drop |
javac sourcefile.java
java sourcefile
JFrame
als Top-Level-Container
JLabel
Quelltext des Beispiels: HelloGUI.java
import javax.swing.*; class MyGui extends JFrame { // Klasse mit eigenen GUI Komponenten ... } public class HelloGUI { public static void main(String[] args) { javax.swing.SwingUtilities.invokeLater(new Runnable() { public void run() { MyGui myGUI = new MyGui(); // Instanzierung der eigenen Klasse myGUI.createGUI(); // im Event Dispatching Thread } }); } }
import javax.swing.*; class MyGui extends JFrame { public void createGUI() { setTitle("HelloGUI"); setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE); setSize(320, 240); JLabel label = new JLabel("Hello World"); getContentPane().add(label); setVisible(true); } } public class HelloGUI { ... }
class MyGui extends JFrame { public void createGUI() { ... JMenuBar menuBar = new JMenuBar(); JMenu menu = new JMenu("File"); menuBar.add(menu); JMenuItem item = new JMenuItem("Open"); menu.add(item); setJMenuBar(menuBar); setVisible(true); } }
class MyGui extends JFrame { public void createGUI() { ... setLayout(null); // keine automatisches Layout JLabel label = new JLabel("Hello World"); label.setBounds(120, 0, 150, 30); // manuelles Positionieren getContentPane().add(label); JButton button = new JButton("Button Text"); button.setBounds(120, 30, 150, 30); getContentPane().add(button); ... } }
AbstractButton
public class ActionEvent extends AWTEvent { // constructors public ActionEvent(Object source, int id, String command) { ... } ... // public members public String getActionCommand() { ... } public long getWhen() { ... } public int getModifiers() { ... } public String paramString() { ... } }

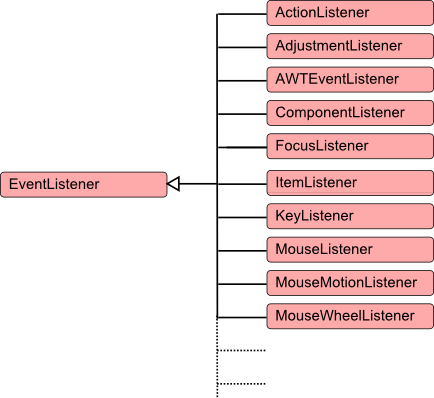

ActionListener
public interface ActionListener extends EventListener { void actionPerformed(ActionEvent event); }
AbstractButton
public abstract class AbstractButton extends ... { ... public void addActionListener(ActionListener l) {... } public void removeActionListener(ActionListener l) {... } public ActionListener[] getActionListeners() {... } ... }
Quelltext des Beispiels: ActionButton
class MyGui extends JFrame implements ActionListener{ private int counter = 0; JLabel label = new JLabel("Hello World"); public void createGUI() { ... JButton button = new JButton("Increment"); button.addActionListener(this); getContentPane().add(button); ... } public void actionPerformed(ActionEvent event) { counter++; label.setText("Click #" + Integer.toString(counter)); } }
class MyGui extends JFrame implements ActionListener{ ... JMenuItem item2 = new JMenuItem("Reset", KeyEvent.VK_R); item2.addActionListener(this); item2.setActionCommand("ResetCmd"); menu.add(item2); setJMenuBar(menuBar); ... } public void actionPerformed(ActionEvent event) { counter++; if(event.getActionCommand().equals("ResetCmd") ) counter = 0; label.setText("Click #" + Integer.toString(counter)); }
public class MouseEvent extends InputEvent { ... public int getX() {...} public int getY() {...} public Point getPoint() {...} public int getButton() {...} public String paramString() {...} ... }
public interface MouseListener extends EventListener { void mouseClicked(MouseEvent event); void mousePressed(MouseEvent event); void mouseReleased(MouseEvent event); void mouseEntered(MouseEvent event); void mouseExited(MouseEvent event); }
JFrame
wird die Position des Mauszeigers ausgegeben
Quelltext des Beispiels: MyMouseListener.java
class MyGuiMouseListener implements MouseListener { ... } class MyGui extends JFrame { public void createGUI() { ... JLabel label = new JLabel("Position: 0, 0"); label.setBounds(120, 0, 150, 30); getContentPane().add(label); MyGuiMouseListener mouseListener = new MyGuiMouseListener(); mouseListener.setLabelRef(label); addMouseListener(mouseListener); ... } }
class MyGuiMouseListener implements MouseListener { private JLabel labelRef; public void setLabelRef(JLabel label) { labelRef= label; } public void mousePressed(MouseEvent event) { labelRef.setText("Position: " + Integer.toString(event.getX()) + ", " + Integer.toString(event.getY())); } public void mouseClicked(MouseEvent event) {} public void mouseReleased(MouseEvent event){} public void mouseEntered(MouseEvent event) {} public void mouseExited(MouseEvent event) {} }
MouseListener
) alle Methoden
vorhanden sein, auch wenn diese nicht benötigt werden
class MyGuiMouseAdapter extends MouseAdapter { private JLabel labelRef; public void setLabelRef(JLabel label) { labelRef= label; } public void mousePressed(MouseEvent event) { labelRef.setText("Position: " + Integer.toString(event.getX()) + ", " + Integer.toString(event.getY())); } } class MyGui extends JFrame { public void createGUI() { ... MyGuiMouseAdapter mouseAdapter = new MyGuiMouseAdapter(); mouseAdapter.setLabelRef(label); addMouseListener(mouseAdapter); } }
class MyGui extends JFrame { public void createGUI() { ... setLayout(null); // keine automatisches Layout setResizeable(false); // Fenstergröße ist nicht veränderbar JLabel label = new JLabel("Hello World"); label.setBounds(120, 0, 150, 30); // manuelles Positionieren getContentPane().add(label); } }
public interface LayoutManager { void addLayoutComponent(String name, Component component); void removeLayoutComponent(Component component); Dimension preferredLayoutSize(Container parent); Dimension minimumLayoutSize(Container parent); void layoutContainer(Container parent); }
JFrame
Quelltext des Beispiels: MyBorderLayout.java
class MyGui extends JFrame{ public void createGUI() { ... Container contentPane = getContentPane(); contentPane.setLayout(new BorderLayout(0,0)); contentPane.add(BorderLayout.NORTH, new JButton("North")); contentPane.add(BorderLayout.EAST, new JButton("East")); contentPane.add(BorderLayout.SOUTH, new JButton("South")); contentPane.add(BorderLayout.WEST, new JButton("West")); contentPane.add(BorderLayout.CENTER, new JButton("Center")); setVisible(true); } }
Quelltext des Beispiels: MyGridLayout.java
class MyGui extends JFrame{ public void createGUI() { ... Container contentPane = getContentPane(); // 3 Zeilen mit Abstand 15, und 2 Spalten mit Abstand 5 contentPane.setLayout(new GridLayout(3, 2, 5, 15)); contentPane.add(new JButton("Button 1")); contentPane.add(new JButton("Button 2")); contentPane.add(new JButton("Button 3")); contentPane.add(new JButton("Button 4")); contentPane.add(new JButton("Button 5")); contentPane.add(new JButton("Button 6")); setVisible(true); } }
Quelltext des Beispiels:
MySpringLayout.java, SpringUtilities.java
public void createGUI() { ... String[] labels = {"Firstname: ", "Lastname: ", "Student ID: ", "Enrolled since: "}; Container cp = getContentPane(); cp.setLayout(new SpringLayout()); for (int i = 0; i < labels.length; i++) { JLabel label = new JLabel(labels[i], JLabel.TRAILING); cp.add(label); JTextField textField = new JTextField(10); label.setLabelFor(textField); cp.add(textField); } SpringUtilities.makeCompactGrid(cp, labels.length, 2, 5, 5, 5, 5); pack(); // dense packing setVisible(true); }
JButton
startet eine lange Berechnung
JProgressBar
angezeigt
Quelltext des Beispiels: MyProgressBar.java
class MyGui extends JFrame implements ActionListener { final JProgressBar progressBar = new JProgressBar(0, 100); final JButton button = new JButton("Compute"); boolean userStopped = false, threadAlive = false; int percent; Runnable updateUI = new Runnable() { ... }; // for UI update Runnable workerThread = new Runnable() { ... }; // for computation public void createGUI() {... } public void actionPerformed(ActionEvent event) { // button pressed if(!threadAlive) { threadAlive = true; userStopped = false; new Thread(workerThread).start(); } else userStopped = true; } }
Runnable workerThread = new Runnable() { // for computation public void run() { for (int i=0; i < 100 && !userStopped; i++) { try { Thread.sleep(50); // compute something here percent = i; // run updateUI in the Event Dispatching Thread SwingUtilities.invokeLater(updateUI); } catch (InterruptedException e) {} } percent = 100; SwingUtilities.invokeLater(updateUI); threadAlive = false; } };
Runnable updateUI = new Runnable() { // for UI update public void run() { if(percent < 100) { progressBar.setString("Computing " + percent + "%"); button.setText("Stop"); }else{ progressBar.setString("Done"); button.setText("Compute"); } progressBar.setValue(percent); } };
JFrame
) modifiziert, indem deren paint()
Methode überschrieben
wird
Quelltext des Beispiels: LineRectCircle.java
class MyGui extends JFrame { public void createGUI() {...} public void paint(Graphics g) { super.paint(g); Graphics2D g2d = (Graphics2D) g; // cast to Graphics2D Line2D.Double line = new Line2D.Double(20.0, 50.0, 50.0, 200.0); g2d.draw(line); Rectangle2D.Double rect = new Rectangle2D.Double(100.0, 50.0, 60.0, 80.0); g2d.draw(rect); // also try g2d.fill(rect); Ellipse2D.Double circle = new Ellipse2D.Double(200.0, 100.0, 80.0, 80.0); g2d.draw(circle); // also try g2d.fill(circle); } }
GeneralPath
Klasse
Quelltext des Beispiels: MyGeneralPath.java
public void paint(Graphics g) { super.paint(g); Graphics2D g2d = (Graphics2D) g; // cast to Graphics2D GeneralPath gp = new GeneralPath(); gp.moveTo( 50, 50); // start here gp.lineTo( 50, 70); // going down gp.lineTo(100, 70); // going right gp.lineTo(100, 180); // going down gp.lineTo(120, 180); // going right gp.lineTo(120, 70); // going up gp.lineTo(170, 70); // going right gp.lineTo(170, 50); // going up gp.lineTo( 50, 50); // going left (back to start) g2d.draw(gp); // also try g2d.fill(gp); }
Anregungen oder Verbesserungsvorschläge können auch gerne per E-mail an mich gesendet werden: Kontakt
