Graphics Programming
Textures

Thorsten Thormählen
November 29, 2021
Part 7, Chapter 1

This is the print version of the slides.

Advance slides with the → key or
by clicking on the right border of the slide

Control Keys

→ move to next slide (also Enter or Spacebar).
← move to previous slide.
d enable/disable drawing on slides
p toggles between print and presentation view
CTRL + zoom in
CTRL - zoom out
CTRL 0 reset zoom

Slides can also be advanced by clicking on the left or right border of the slide.

Notation

Type	Font	Examples
Variables (scalars)	italics	$a, b, x, y$
Functions	upright	$\mathrm{f}, \mathrm{g}(x), \mathrm{max}(x)$
Vectors	bold, elements row-wise	$\mathbf{a}, \mathbf{b}= \begin{pmatrix}x\\y\end{pmatrix} = (x, y)^\top,$ $\mathbf{B}=(x, y, z)^\top$
Matrices	Typewriter	$\mathtt{A}, \mathtt{B}= \begin{bmatrix}a & b\\c & d\end{bmatrix}$
Sets	calligraphic	$\mathcal{A}, B=\{a, b\}, b \in \mathcal{B}$
Number systems, Coordinate spaces	double-struck	$\mathbb{N}, \mathbb{Z}, \mathbb{R}^2, \mathbb{R}^3$

2D Textures

2D textures are 2D raster graphics, which can be applied as a "color wallpaper" to 3D geometry
This an efficient way to achieve a high level of detail without representing the details as geometry

3D geometry

2D raster graphics

Textured 3D model

Source: 3D Model:Turbosquid (Standard Royalty Free License); Renderer: 3ds Max

2D Textures

It is possible to use multiple textures in a scene
For example, the textures can be switched for each polygon or each object

Source: 3D Model:Turbosquid (Standard Royalty Free License); Renderer: 3ds Max

Texture Mapping

$x$

$y$

$z$

$s$

$t$

$1$

$0$

2D textures are usually squared and are parameterized with the parameters $s$ and $t$ in the range $[0;1]$
In order to apply a texture, it is necessary to define the mapping function ("texture mapping") from the 2D texture space to a 3D surface
This is typically accomplished by assigning
texture coordinates $(s,t)^\top$ to 3D vertices $\mathbf{P}=(x,y,z)^\top$ of the 3D model
$(s, t)^\top \quad \longmapsto \quad (x,y,z)^\top$

Source: 3D model:Turbosquid (Standard Royalty Free License); Renderer: 3ds Max

Textures in the OpenGL-Pipeline

Source: based on Mark Segal, Kurt Akeley, The OpenGL Graphics System: A Specification Version 2.0, 2004, Figure 2.1. Block diagram of the GL (modified)

Textures in the OpenGL-Pipeline

In OpenGL, setting a texture coordinate is performed with the command glTexCoord2f

The particular texture coordinate that is set while drawing a vertex is assigned to the vertex
(OpenGL as a state machine):

...
glBegin(GL_POLYGON);
glTexCoord2f(0.25f,0.50f); glVertex3f(-1.0f, 1.0f, 1.0f);
glTexCoord2f(0.25f,0.25f); glVertex3f(-1.0f,-1.0f, 1.0f);
glTexCoord2f(0.50f,0.25f); glVertex3f( 1.0f,-1.0f, 1.0f);
glTexCoord2f(0.50f,0.50f); glVertex3f( 1.0f, 1.0f, 1.0f);
glEnd();
...

Textures in the OpenGL Pipeline

The texture coordinates are part of the vertex data in the OpenGL pipeline and pass through the left path of the pipeline
The texture itself consists of pixel data that pass through the right path of the pipeline
The texture pixels are also often referred to as "texels"
In the rasterizer, for each output fragment (pixel of the frame buffer) interpolated texture coordinates $(s,t)^\top$ are computed
Ideally, for the interpolation the distortion caused by perspective projection is taken into account (perspective texture-mapping)

Creating 2D Textures in OpenGL

Creating a texture is usually done before the actual rendering, e.g., in the function init()
- A 2D texture can be generated with
```
glBindTexture(GL_TEXTURE_2D, texID);
glTexImage2D(GL_TEXTURE_2D, texLevel, texFormat, inWidth, inHeight,
             inBorder, inFormat, inType, inData);
```
- where texID is an integer value that serves as an unique identifier ("ID") for the generated texture. With the function glGenTextures(1, &texID) such an unique identifier can be generated
- During the generation, additional parameters are often set that influence the appearance of the texture

Activating 2D Textures in OpenGL

During rendering, first the texture unit must be activated
glEnable(GL_TEXTURE_2D);
To render with a particular texture, its unique ID is used:
glBindTexture(GL_TEXTURE_2D, texID);
This command "binds" the texture with the given ID to the target GL_TEXTURE_2D
That is, glBindTexture has several functions: when first called with a new ID, a new texture is generated, otherwise an existing texture is activated

Example: Texturing a Cube

In this example, a cube is textured
To this end, the texture coordinates and vertices must be associated with each other (in the figure below, correspondences are coded with the same colors)

$x$

$y$

$z$

$s$

$t$

$1$

$0$

texture coordinates

vertices

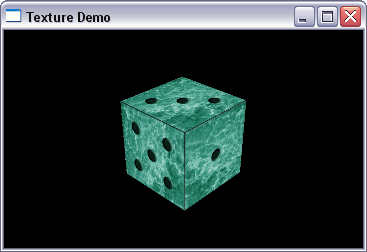

Example: Texturing a Cube in OpenGL

Source code of the example with GLUT: Texture.cpp
Source code of the example with Qt: Texture.cpp
Source code of the example with Java: Texture.java
Textures: png, ppm

Example: Texturing a Cube in OpenGL

class Renderer {
public:
  float t;
private:
  GLuint texID;

public:
  // constructor
  Renderer() : t(0.0), texID(0) {}

  // destructor
  ~Renderer() {
    if(texID !=0) glDeleteTextures( 1, &texID);
  }

public:
  void init() {
    glEnable(GL_DEPTH_TEST);
    std::string fileName("dice_texture_flip.ppm");
    texID = loadTexture(fileName);
  }

  void resize(int w, int h) {
    glViewport(0, 0, w, h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluPerspective (30.0, (float)w/(float)h, 0.1, 50.0);
  }

  void display() {
    glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    // set camera
    gluLookAt(8.0, -2.0, 5.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
    // draw scene
    glRotatef(t, 0.0f, 0.0f, 1.0f);
    drawTexturedCube();
  }

private:
  // returns a valid textureID on success, otherwise 0
  GLuint loadTexture(std::string &filename) {

    unsigned width;
    unsigned height;
    int level = 0;
    int border = 0;
    std::vector<unsigned char> imgData;

    // load image data
    if(!loadPPMImageFlipped(filename, width, height, imgData)) return 0;

    // data is aligned in byte order
    glPixelStorei(GL_UNPACK_ALIGNMENT, 1);

    //request textureID
    GLuint textureID;
    glGenTextures( 1, &textureID);

    // bind texture
    glBindTexture( GL_TEXTURE_2D, textureID);

    //define how to filter the texture (important but ignore for now)
    glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);

    //texture colors should replace the original color values
    glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE); //GL_MODULATE

    // specify the 2D texture map
    glTexImage2D(GL_TEXTURE_2D, level, GL_RGB, width, height, border, GL_RGB,
                 GL_UNSIGNED_BYTE, &imgData[0]);

    // return unique texture identifier
    return textureID;
  }

  void drawTexturedCube() {
    glEnable(GL_TEXTURE_2D);

    glBindTexture(GL_TEXTURE_2D, texID);
    glColor3f(1.0f,0.0f,0.0f);
    glBegin(GL_POLYGON); // three
    glTexCoord2f(0.25f,0.50f); glVertex3f(-1.0f, 1.0f, 1.0f);
    glTexCoord2f(0.25f,0.25f); glVertex3f(-1.0f,-1.0f, 1.0f);
    glTexCoord2f(0.50f,0.25f); glVertex3f( 1.0f,-1.0f, 1.0f);
    glTexCoord2f(0.50f,0.50f); glVertex3f( 1.0f, 1.0f, 1.0f);
    glEnd();
    glColor3f(1.0f,1.0f,0.0f);
    glBegin(GL_POLYGON); // five
    glTexCoord2f(0.00f,0.50f); glVertex3f(-1.0f, 1.0f,-1.0f);
    glTexCoord2f(0.00f,0.25f); glVertex3f(-1.0f,-1.0f,-1.0f);
    glTexCoord2f(0.25f,0.25f); glVertex3f(-1.0f,-1.0f, 1.0f);
    glTexCoord2f(0.25f,0.50f); glVertex3f(-1.0f, 1.0f, 1.0f);
    glEnd();
    glColor3f(0.0f,0.0f,1.0f);
    glBegin(GL_POLYGON); // two
    glTexCoord2f(0.50f,0.50f); glVertex3f( 1.0f, 1.0f, 1.0f);
    glTexCoord2f(0.50f,0.25f); glVertex3f( 1.0f,-1.0f, 1.0f);
    glTexCoord2f(0.75f,0.25f); glVertex3f( 1.0f,-1.0f,-1.0f);
    glTexCoord2f(0.75f,0.50f); glVertex3f( 1.0f, 1.0f,-1.0f);
    glEnd();
    glColor3f(1.0f,1.0f,1.0f);
    glBegin(GL_POLYGON); // six
    glTexCoord2f(0.25f,0.75f); glVertex3f(-1.0f, 1.0f,-1.0f);
    glTexCoord2f(0.25f,0.50f); glVertex3f(-1.0f, 1.0f, 1.0f);
    glTexCoord2f(0.50f,0.50f); glVertex3f( 1.0f, 1.0f, 1.0f);
    glTexCoord2f(0.50f,0.75f); glVertex3f( 1.0f, 1.0f,-1.0f);
    glEnd();
    glColor3f(0.0f,1.0f,1.0f);
    glBegin(GL_POLYGON); // one
    glTexCoord2f(0.25f,0.25f); glVertex3f(-1.0f, -1.0f, 1.0f);
    glTexCoord2f(0.25f,0.00f); glVertex3f(-1.0f, -1.0f,-1.0f);
    glTexCoord2f(0.50f,0.00f); glVertex3f( 1.0f, -1.0f,-1.0f);
    glTexCoord2f(0.50f,0.25f); glVertex3f( 1.0f, -1.0f, 1.0f);
    glEnd();
    glColor3f(0.0f,1.0f,0.0f);
    glBegin(GL_POLYGON); //four
    glTexCoord2f(0.75f,0.50f); glVertex3f( 1.0f, 1.0f,-1.0f);
    glTexCoord2f(0.75f,0.25f); glVertex3f( 1.0f,-1.0f,-1.0f);
    glTexCoord2f(1.00f,0.25f); glVertex3f(-1.0f,-1.0f,-1.0f);
    glTexCoord2f(1.00f,0.50f); glVertex3f(-1.0f, 1.0f,-1.0f);
    glEnd();
    glDisable(GL_TEXTURE_2D);
  }
  ...
};

Wrap Parameter

The GL_TEXTURE_WRAP parameter defines how the texture mapping behaves if the texture coordinate $s$ or $t$ leaves the range $[0;1]$

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);

Possible parameter values are: GL_CLAMP, GL_REPEAT, GL_CLAMP_TO_BORDER, GL_CLAMP_TO_EDGE, oder GL_MIRRORED_REPEAT

Filter Parameters

When displaying textures it often occurs that color values for texture coordinates must be calculated that are not on the pixel grid of the underlying raster graphics
A filter parameter allows to specify with which filtering method the color values are to be determined

GL_TEXTURE_MIN_FILTER sets the filter for reduction in size and GL_TEXTURE_MAG_FILTER for enlargements:

glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);

Possible parameter values are: GL_NEAREST or GL_LINEAR

Filter Parameter

With GL_NEAREST the color value of the pixel is used that has the shortest distance to the texture coordinate (nearest-neighbor)
This operation is very fast, because the texture coordinate is simply rounded to an integer pixel value and the corresponding color value $f$ can then be read directly

$\begin{align} x_{\small \mathrm{nearest}} &= \mathrm{int}(s * \mathrm{width} + 0.5)\\ y_{\small \mathrm{nearest}} &= \mathrm{int}(t * \mathrm{height} + 0.5)\\ f_{\small \mathrm{nearest}} &= f(x_{\small \mathrm{nearest}}, y_{\small \mathrm{nearest}} ) \end{align}$
With GL_LINEAR the color value is determined by bilinear interpolation

Bilinear Interpolation

$x$

$x_1$

$x_2$

$y$

$y_1$

$y_2$

pixel grid

data points

$\mathbf{p}$

$\mathbf{q}_1$

$\mathbf{q}_2$

For bilinear interpolation at the point $\mathbf{p}=(x,y)^\top$ the color value is computed from the 4 neighboring pixel values that lie exactly on the pixel grid. Let's assume they are given as: $(x_1, y_1)^\top$, $(x_1, y_2)^\top$, $(x_2, y_1)^\top$, and $(x_2, y_2)^\top$
First, color values at auxiliary positions $\mathbf{q}_1$ und $\mathbf{q}_2$ are determined by linear interpolation in $x$-direction:
$\begin{align} f(\mathbf{q}_1) &= \frac{x_2-x}{x_2-x_1} f(x_1, y_1) + \frac{x - x_1}{x_2-x_1} f(x_2, y_1)\\ f(\mathbf{q}_2) &= \frac{x_2-x}{x_2-x_1} f(x_1, y_2) + \frac{x - x_1}{x_2-x_1} f(x_2, y_2) \end{align}$
Another linear interpolation, now in $y$-direction, gives the color value at location $\mathbf{p}$:
$\begin{align} f(\mathbf{p}) &= \frac{y_2-y}{y_2-y_1} f(\mathbf{q}_1) + \frac{y - y_1}{y_2-y_1} f(\mathbf{q}_2) \end{align}$

Bilinear Interpolation

By inserting the auxiliary variables the overall interpolation formula is given by:
$\begin{align} f(\mathbf{p}) = \Big((x_2-x_1)(y_2-y_1)\Big)^{-1} \Big( &(x_2-x)(y_2-y)\, f(x_1,y_1) +\\\ & (x-x_1)(y_2-y) \,f(x_2,y_1) +\\ & (x_2-x)(y-y_1) \,f(x_1,y_2) +\\ & (x-x_1)(y-y_1) \,f(x_2,y_2) \Big) \end{align}$
Thus, a bilinear interpolation has a relatively high computational effort compared to nearest neighbor interpolation
The advantage is that by such a weighted averaging (as it is performed by bilinear interpolation) the "staircasing effect" at the edges (aliasing) is reduced

Mipmaps

For distant surfaces, despite bilinear interpolation, aliasing effects occur
The problem with distant surfaces is that a lot of texture pixels are projected into the area of one pixel in the camera image
To determine the correct color value, not only the 4 nearest neighbors, but all affected texture pixels must be taken into account for the interpolation
To approximate this, mipmaps are used
MIP = multum in parvo (Latin, "much in little")

Mipmaps

A mipmap is a resolution pyramid, where for each level the resolution is exactly halved
Texture mapping for distant objects can use mipmaps to reduce aliasing effects
The extraction of the color values should occur at a pyramid level that is coarse enough so that nearest neighbor or bilinear interpolation gets approximately the correct result for the color value
To this end, the resolution must be chosen such that the texture grid after projection into the image plane matches approximately the size of the framebuffer
The appropriate resolution is not set per object or polygon, but is determined individually for each pixel of the framebuffer

Mipmaps in OpenGL

To use a mipmap the following parameters must be set

glTexParameteri(GL_TEXTURE_2D,
                GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexParameteri(GL_TEXTURE_2D,
                GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_LINEAR);
glTexParameteri(GL_TEXTURE_2D, GL_GENERATE_MIPMAP, GL_TRUE);
glTexImage2D (...);

Possible parameter values for the GL_TEXTURE_MIN_FILTER are: GL_NEAREST_MIPMAP_NEAREST, GL_LINEAR_MIPMAP_NEAREST, GL_NEAREST_MIPMAP_LINEAR, und GL_LINEAR_MIPMAP_LINEAR
For the GL_TEXTURE_MAG_FILTER the use of mipmaps does not make sense and is not supported

Texture Parameters and Mip-Mapping in OpenGL

Source code with GLUT: TextureParameter.cpp
Source code with Qt: TextureParameter.cpp
Source code with Java: TextureParameter.java
Textures: Textures.zip

Texture Parameters and Mip-Mapping in OpenGL

class Renderer {
public:
  float t;
  int wrapS;
  int wrapT;
  int magFilter;
  int minFilter;
  int selectedTexID;
private:
  GLuint texID0;
  GLuint texID1;

public:
  // constructor
  Renderer() : t(-90.0f),
               wrapS(GL_REPEAT), wrapT(GL_REPEAT),
               magFilter(GL_LINEAR),
               minFilter(GL_LINEAR_MIPMAP_LINEAR),
               selectedTexID(0),
               texID0(0), texID1(0)
  {}
  // destructor
  ~Renderer() {
    if(texID0 !=0) glDeleteTextures( 1, &texID0);
    if(texID1 !=0) glDeleteTextures( 1, &texID1);
  }

public:
  void init() {
    glEnable(GL_DEPTH_TEST);
    std::string fileName0("checker_texture_512.ppm");
    texID0 = loadTexture(fileName0);
    std::string fileName1("checker_texture_32.ppm");
    texID1 = loadTexture(fileName1);
  }

  void resize(int w, int h) {
    glViewport(0, 0, w, h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluPerspective (30.0, (float)w/(float)h, 0.1, 50.0);
  }

  void display() {
    glClearColor(0.7f, 0.7f, 0.7f, 0.0f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    // set camera
    gluLookAt(8.0, -2.0, 1.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
    // draw scene
    glRotatef(t, 0.0f, 0.0f, 1.0f);
    drawTexturedPlane();
  }

  // returns a valid textureID on success, otherwise 0
  GLuint loadTexture(std::string &filename) {

    unsigned width;
    unsigned height;
    int level = 0;
    int border = 0;
    std::vector <unsigned char> imgData;

    // load image data
    if(!loadPPMImageFlipped(filename, width, height, imgData)) return 0;

    // data is aligned in byte order
    glPixelStorei(GL_UNPACK_ALIGNMENT, 1);

    //request textureID
    GLuint textureID;
    glGenTextures(1, &textureID);

    // bind texture
    glBindTexture(GL_TEXTURE_2D, textureID);


    // parameters that define how to warp the texture
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);
    GLfloat borderColor[4] = {1.0f, 1.0f, 0.0f, 1.0f};
    glTexParameterfv(GL_TEXTURE_2D, GL_TEXTURE_BORDER_COLOR, borderColor);

    // parameters that define how to filter the texture
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER,
                    GL_LINEAR_MIPMAP_LINEAR);
    glTexParameteri(GL_TEXTURE_2D, GL_GENERATE_MIPMAP, GL_TRUE);


    // texture colors should replace the original color values
    glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE); //GL_MODULATE

    // specify the 2D texture map
    glTexImage2D (GL_TEXTURE_2D, level, GL_RGB, width, height, border,
                  GL_RGB, GL_UNSIGNED_BYTE, &imgData[0]);

    // return unique texture identifier
    return textureID;
  }

  void setTextureParameters() {
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, wrapS);
    glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, wrapT);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_MAG_FILTER, magFilter);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_MIN_FILTER, minFilter);
  }

  void drawTexturedPlane() {
    glEnable(GL_TEXTURE_2D);
    if(selectedTexID == 0) {
      glBindTexture(GL_TEXTURE_2D, texID0);
    }else{
      glBindTexture(GL_TEXTURE_2D, texID1);
    }
    setTextureParameters();
    glColor3f(1.0,0.0,0.0);
    glBegin(GL_POLYGON);
    glTexCoord2f(5 .00f,  5.00f);
    glVertex3f(-10.0f, 10.0f, 0.0f);
    glTexCoord2f( 5.00f, -4.00f);
    glVertex3f(-10.0f,-10.0f, 0.0f);
    glTexCoord2f(-4.00f, -4.00f);
    glVertex3f( 10.0f,-10.0f, 0.0f);
    glTexCoord2f(-4.00f,  5.00f);
    glVertex3f( 10.0f, 10.0f, 0.0f);
    glEnd();
    glDisable(GL_TEXTURE_2D);
  }
  ...
};

Effect of the Texture

The function
```
glTexEnv(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE);
```
controls how the texture color $C_s$ and its alpha value $A_s$ is combined with the current fragment
(color $C_f$ and alpha $A_f$)
Possible parameter values are, e.g.:
GL_REPLACE, GL_MODULATE, GL_DECAL, GL_BLEND, oder GL_ADD

Effect of the Texture

	GL_RGB	GL_RGBA
GL_REPLACE	$C=C_s$ $A=A_f$	$C=C_s$ $A=A_s$
GL_MODULATE	$C=C_fC_s$ $A=A_f$	$C=C_f C_s$ $A=A_f A_s$
GL_DECAL	$C=C_s$ $A=A_f$	$C=C_f (1-A_s) + C_s A_s$ $A=A_f$
GL_BLEND	$C=C_f(1-C_s)+C_c C_s$ $A=A_f$	$C=C_f(1-C_s)+C_c C_s$ $A=A_f A_s$
GL_ADD	$C=C_f+ C_s$ $A=A_f$	$C=C_f+ C_s$ $A=A_f A_s$

Example: Blending of Two Textures in OpenGL

Source code with Qt: TextureBlend.cpp
Source code with Java: TextureBlend.java
Textures: Textures.zip

Automatic Generation of Texture Coordinates

So far, texture mapping for a small number of polygons was presented, where the texture coordinates were assigned by hand
For texturing of object with complex surface topology this is very complicated, so that an automatic procedure is desirable
Idea of Bier & Sloan (1986):
- Step 1: Wrap the object with a simple virtual surface (cylinder, sphere, or cube) with canonical texture coordinates
- Step 2: Transfer the texture coordinates form the virtual to the wrapped object

Box Mapping

Step 1: Wrap the object with an axis-parallel bounding box. This is easily calculated by the maximum and minimum coordinates of all the vertices (separately computed for each spatial direction)
Step 2: The spatial direction with the longest expansion is used for $s$, the second longest for $t$.
If we have $(x_{\small \mathrm{max}} - x_{\small \mathrm{min}}) ≥ (y_{\small \mathrm{max}} - y_{\small \mathrm{min}}) ≥ (z_{\small \mathrm{max}} - z_{\small \mathrm{min}})$, the texture coordinates $\mathbf{P}=(x,y,z)^\top$ for a vertex are computed by:

$x$

$y$

$z$

$x_{\small \mathrm{max}}$

$x_{\small \mathrm{min}}$

$y_{\small \mathrm{max}}$

$y_{\small \mathrm{min}}$

$z_{\small \mathrm{max}}$

$z_{\small \mathrm{min}}$

$\mathbf{P}$

$\begin{align} s &= \frac{x-x_{\small \mathrm{min}} }{ x_{\small \mathrm{max}} - x_{\small \mathrm{min}} }\\ t &= \frac{y-y_{\small \mathrm{min}} }{ y_{\small \mathrm{max}} - y_{\small \mathrm{min}} } \end{align}$

Cylinder Mapping

$x$

$y$

$z$

$z_{\small \mathrm{max}}$

$z_{\small \mathrm{min}}$

$\mathbf{P}$

$\phi$

Step 1: Wrap the object with a cylinder. In the following it is assumed that the cylinder is aligned with the $z$-axis. If this is not the case, this can always be achieved by a corresponding rotation.
Step 2: Convert a vertex $\mathbf{P}=(x,y,z)^\top$ to cylindrical coordinates with angle $\phi$ and height $h$. For the texture coordinates we have:
$\begin{align} s &= h = \frac{z-z_{\small \mathrm{min}} }{ z_{\small \mathrm{max}} - z_{\small \mathrm{min}} }\\ t &= \frac{1}{2\pi} \phi = \frac{1}{2\pi} \arctan\left(\frac{y}{x}\right) \end{align}$

Notes: Since in practice $x=0$ can occur, it makes sense to replace the $\arctan$ with the $\mathrm{atan2}$

Sphere Mapping

$y$

$x$

$z$

$\mathbf{P}$

$\phi$

$\theta$

Step 1: Wrap the object with a sphere
Step 2: Convert a vertex $\mathbf{P}=(x,y,z)^\top$ to spherical coordinates with the angles $\phi$ and $\theta$. For the texture coordinates we have:
$\begin{align} s &= \frac{1}{2\pi} \phi = \frac{1}{2\pi} \arctan\left(\frac{y}{x}\right)\\ t &= 1.0 - \frac{1}{\pi} \theta \\ &= 1.0 - \frac{1}{\pi} \arccos(z) \\ &= \frac{1}{\pi} \arccos(-z)\\ \end{align}$

3D Textures

3D textures are raster graphics with three dimensions
Such volumetric data is often generated in medical imaging. A CT or MRI machine takes several cuts through the investigated object. Each slice represents a 2D raster graphics and can be assembled to a 3D volume by stacking the slices.

s

r

t

1

1

1

0
The texture coordinates $s$ and $t$, as known from 2D textures, are extended by a new dimension $r$, which is orthogonal to the two existing ones

Source: Volume rendered CT scan Wikipedia, Public Domain

3D Textures in OpenGL

In OpenGL the commands for creation and application of 3D textures are consistent with the commands for 2D textures
The function glTexImage2D becomes glTexImage3D and GL_TEXTURE_2D becomes GL_TEXTURE_3D, etc.
When passing texture data to glTexImage3D the memory layout can be interpreted as a series of 2D textures data
That is, when filling the memory, the texel in $s$-direction is increased in each step, in $t$-direction after width texel values, and in $r$-direction only after width*height texel values

Example: Texturing a Random Terrain

Source code of the example with GLUT: Texture3D.cpp
Source code of the example with Qt: Texture3D.cpp
Source code of the example with Java: Texture3D.java
Textures: Textures.zip

Example: Texturing a Random Terrain

class Renderer {
public:
  float t;
private:
  GLuint texID;
  std::vector <float> terrain;

public:
  // constructor
  Renderer() : t(0.0), texID(0) {}
  //destructor
  ~Renderer() {
    if(texID !=0) glDeleteTextures( 1, &texID);
  }

public:
  void init() {
    glEnable(GL_DEPTH_TEST);

    glTexImage3D = (PFNGLTEXIMAGE3DPROC)
                   wglGetProcAddress("glTexImage3D");
    if(glTexImage3D == NULL) {
      QMessageBox msgBox;
      msgBox.setText("Can not load the glTexImage3D function");
      msgBox.exec();
    }

    std::vector< std::string > filenames;
    filenames.push_back("deep_water.ppm");
    filenames.push_back("shallow_water.ppm");
    filenames.push_back("shore.ppm");
    filenames.push_back("fields.ppm");
    filenames.push_back("rocks.ppm");
    filenames.push_back("snow.ppm");
    texID = loadTexture3D(filenames);

    rebuildTerrain();
  }

  void resize(int w, int h) {
    glViewport(0, 0, w, h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluPerspective (30.0, (float)w/(float)h, 0.1, 50.0);
  }

  void display() {
    glClearColor(0.0f, 0.0f, 0.0f, 0.0f);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    // set camera
    gluLookAt(1.5, -1.0, 1.5, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
    // draw scene
    glRotatef(t, 0.0f, 0.0f, 1.0f);
    drawTerrain();
  }

  void rebuildTerrain() {

    //create random values
    int dim = 40;
    terrain.resize(dim*dim);

    for(int r=0; r < dim*dim; r++) {
      int rval = rand();
      terrain[r] = (fabs(float(rval))/float(RAND_MAX));
    }

    if(true) { // generate smooth terrain values
      std::vector<float≷ smoothTerrain(dim*dim);
      for(unsigned k=0; k < 5; k++){
        float maxVal = 0.0f;
        float minVal = 1.0f;
        for(int x = 0; x < dim; x++) {
          for(int y = 0; y < dim; y++) {
            if(x == 0 || x == dim-1) terrain[x*dim+y] = 0.0f;
            else if (y == 0 || y == dim-1) {
              terrain[x*dim+y] = 0.0f;
            }else {
              float a = 0.0f;
              int counter = 0;
              for(int s=-1; s <= 1; s++) {
                for(int r=-1; r <= 1; r++) {
                  a += terrain[(x+s)*dim+(y+r)];
                  counter++;
                }
              }
              float val = a / float(counter);
              smoothTerrain[x*dim+y] = val;
              if(val > maxVal) maxVal = val;
              if(val < minVal) minVal = val;
            }
          }
        }
        for(int r=0; r < dim*dim; r++) {
          terrain[r] = (smoothTerrain[r] - minVal) /
                       (maxVal-minVal);
        }
      }
    }
  }

private:

  // returns a valid textureID on success, otherwise 0
  GLuint loadTexture3D(std::vector< std::string > &filenames) {

    unsigned width = 0;
    unsigned height = 0;
    unsigned depth = unsigned(filenames.size());
    int level = 0;
    int border = 0;
    std::vector<unsigned char> imgData;
    std::vector<unsigned char> data3d;
    unsigned prevWidth = 0;
    unsigned prevHeight = 0;

    for(unsigned i=0; i < depth; i++) {
      // load image data
      if(!loadPPMImageFlipped(filenames[i], width, height, imgData)) return 0;
      if(i != 0 && (prevWidth != width || prevHeight != height)) return 0;

      // pack 2D images subsequently into a large 3D buffer
      data3d.insert(data3d.end(), imgData.begin(), imgData.end());
      prevWidth = width;
      prevHeight = height;
    }

    // data is aligned in byte order
    glPixelStorei(GL_UNPACK_ALIGNMENT, 1);

    //request textureID
    GLuint textureID;
    glGenTextures( 1, &textureID);

    // bind texture
    glBindTexture(GL_TEXTURE_3D, textureID);

    //parameters the define how to warp the texture
    glTexParameteri(GL_TEXTURE_3D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_BORDER);
    glTexParameteri(GL_TEXTURE_3D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_BORDER);
    glTexParameteri(GL_TEXTURE_3D, GL_TEXTURE_WRAP_R, GL_CLAMP_TO_BORDER);
    GLfloat borderColor[4] = {0.0f,0.0f,0.0f,1.0f};
    glTexParameterfv(GL_TEXTURE_3D, GL_TEXTURE_BORDER_COLOR, borderColor);

    //define how to filter the texture
    glTexParameteri (GL_TEXTURE_3D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri (GL_TEXTURE_3D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);

    //texture colors should replace the original color values
    glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE); //GL_MODULATE

    // specify the 2D texture map
    glTexImage3D(GL_TEXTURE_3D, level, GL_RGB, width, height, depth, border,
                 GL_RGB, GL_UNSIGNED_BYTE, &data3d[0]);

    // return unique texture identifier
    return textureID;
  }


  void drawTerrain() {
    glEnable(GL_TEXTURE_3D);

    glBindTexture(GL_TEXTURE_3D, texID);
    glColor3f(1.0f,0.0f,0.0f);
    unsigned dim = unsigned(sqrt(terrain.size()));
    float maxHeight = 0.2f;
    float texHeight = 0.9f;
    for(unsigned x = 1; x < dim; x++) {
      for(unsigned y = 1; y < dim; y++) {
        glBegin(GL_POLYGON);
        glTexCoord3f(float(x-1)/float(dim),
                     float(y-1)/float(dim),
                     terrain[(x-1)*dim+(y-1)]*texHeight);
        glVertex3f(float(x-1)/float(dim)-0.5f,
                   float(y-1)/float(dim)-0.5f,
                   terrain[(x-1)*dim+(y-1)]*maxHeight);
        glTexCoord3f(float(x)/float(dim),
                     float(y-1)/float(dim),
                     terrain[x*dim+(y-1)]*texHeight);
        glVertex3f(float(x)/float(dim)-0.5f,
                   float(y-1)/float(dim)-0.5f,
                    terrain[x*dim+(y-1)]*maxHeight);
        glTexCoord3f(float(x)/float(dim),
                   float(y)/float(dim),
                   terrain[x*dim+y]*texHeight);
        glVertex3f(float(x)/float(dim)-0.5f,
                   float(y)/float(dim)-0.5f,
                   terrain[x*dim+y]*maxHeight);
        glTexCoord3f(float(x-1)/float(dim),
                   float(y)/float(dim),
                   terrain[(x-1)*dim+y]*texHeight);
        glVertex3f(float(x-1)/float(dim)-0.5f,
                   float(y)/float(dim)-0.5f,
                   terrain[(x-1)*dim+y]*maxHeight);
        glEnd();
      }
    }
    glDisable(GL_TEXTURE_3D);
  }
  ...
};

Texture Units

A graphics card has multiple texture units
This allows simultaneous access to multiple textures since each unit can provide a different texture
This becomes especially interesting when we start writing our own shaders
To support OpenGL 3.x, a graphics card must have at least 16 texture units
The maximum number of texture units can be queried by the command:
```
glGetIntegerv(GL_MAX_TEXTURE_IMAGE_UNITS, &noOfTextureUnits);
```

The command glActiveTexture sets the currently modified texture unit:

glActiveTexture(GL_TEXTURE0);
glBindTexture(GL_TEXTURE_2D, texA);
...
glActiveTexture(GL_TEXTURE1);
glBindTexture(GL_TEXTURE_2D, texB);
...

OpenGL Texture Mapping from an Object-Oriented View

Texture ID (handle on texture object)
Properties of a texture object
- Dimension (1D, 2D, 3D) and resolution (128x128, 256x256, ...)
- Component Type (ubyte, ushort, uint, float16, float32)
- Number and semantic of the components (RGB, RGBA, BGR, ... )
- Data block for raster graphics and mipmap
- Parameters for filtering and wrapping
Properties of the texture unit
- Currently bounded texture object
- Texture environment color
- Parameters for the effect of the texture on the current fragment
- Texture access function (disabled, 1D, 2D, 3D)
- Texture transformation stack glMatrixMode(GL_TEXTURE)

Framebuffer Objects

OpenGL allows to read off the pixel data from the framebuffer, for example, to use them as an input for a second rendering pass
To this end, in addition to the original frame buffer (which is typically controlled by the window manager) a custom framebuffer object (FBO) is created and defined as a new render target (off-screen rendering)
An FBO may include the following 2D raster graphics:
several color buffer, depth buffer, stencil buffer, and accumulation buffer

Creating Framebuffer Objects

An FBO can be generated with

glGenFramebuffers(1, &fboID);
glBindFramebuffer(GL_FRAMEBUFFER, fboID);

The commands only produce an empty container that has no memory assigned for storing the pixel data
Pixel data storage can be provided by either textures or so-called "renderbuffer objects"

2D Textures as a Data Storage

To use a texture as a pixel data memory, it must be generated and then passed to the FBO with glFramebufferTexture2D(...)

glGenTextures (1, &texID);
glBindTexture(GL_TEXTURE_2D, texID);
glTexImage2D(GL_TEXTURE_2D, texLevel, texFormat,
             inWidth, inHeight, inBorder, inFormat, inType, NULL);
glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0,
                       GL_TEXTURE_2D, texID, texLevel);

The second argument indicates for which buffer the texture should be used. Possible parameters are: GL_COLOR_ATTACHMENT0, GL_COLOR_ATTACHMENT1, ..., GL_DEPTH_ATTACHMENT or GL_STENCIL_ATTACHMENT

Renderbuffer Objects as a Data Storage

To use a rendernbuffer object as a pixel data memory, it must be generated with glFramebufferRenderbuffer(..) and then passed with glFramebufferRenderbuffer(..) to the FBO

glGenRenderbuffers(1, &depthID);
glBindRenderbuffer(GL_RENDERBUFFER, depthID);
glRenderbufferStorage(GL_RENDERBUFFER, format, width, height);

glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0,
                          GL_RENDERBUFFER, depthID);

The internal storage format format should be chosen such that it fits the purpose, that is: GL_RGBA for GL_COLOR_ATTACHMENT0 or GL_DEPTH_COMPONENT for GL_DEPTH_ATTACHMENT, etc.

Example: Rendering the Scene to a Texture

Source code of the example with GLUT: Fbo.cpp
Source code of the example with Qt: Fbo.cpp
Source code of the example with Java: Fbo.java

Example: Rendering the Scene to a Texture

class Renderer {
public:
  float t;
  int mode;
private:
  GLuint fboID;
  GLuint texID;
  GLuint depthID;
  int fboTexSize;
  int width;
  int height;
public:
  // constructor
  Renderer() : t(0.0), mode(1),
               fboID(0), texID(0), depthID(0),
               fboTexSize(512), width(0), height(0) {}

  // destructor
  ~Renderer() {
    if(texID !=0) glDeleteTextures( 1, &texID);
    if(fboID !=0) glDeleteFramebuffers(1, &fboID);
    if(depthID != 0) glDeleteRenderbuffers(1, &depthID);
  }

public:
  void init() {
    glEnable(GL_DEPTH_TEST);

    // create a frame buffer object
    glGenFramebuffers(1, &fboID);

    // bind the frame buffer
    glBindFramebuffer(GL_FRAMEBUFFER, fboID);

    // Generate render texture
    glGenTextures (1, &texID);
    glBindTexture(GL_TEXTURE_2D, texID);

    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_MIN_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
    int level = 0;
    glTexImage2D(GL_TEXTURE_2D, level, GL_RGBA,
                 fboTexSize, fboTexSize,
                 0, GL_RGBA, GL_UNSIGNED_BYTE, NULL);
    glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE);

    // Attach the texture to the fbo
    glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0,
                           GL_TEXTURE_2D, texID, level);
    if(!checkFramebufferStatus()) exit(1);

    // generate a renderbuffer for the depth buffer
    glGenRenderbuffers(1, &depthID);
    glBindRenderbuffer(GL_RENDERBUFFER, depthID);
    glRenderbufferStorage(GL_RENDERBUFFER, GL_DEPTH_COMPONENT,
                          fboTexSize, fboTexSize);

    // Attach the depth buffer to the fbo
    glFramebufferRenderbuffer(GL_FRAMEBUFFER,
                              GL_DEPTH_ATTACHMENT,
                              GL_RENDERBUFFER, depthID);
    if(!checkFramebufferStatus()) exit(1);

    // unbind texture
    glBindTexture(GL_TEXTURE_2D, 0);
    //unbind fbo
    glBindFramebuffer(GL_FRAMEBUFFER, 0);
  }

  void resize(int w, int h) {
    width = w;
    height = h;
    changeViewport(w, h);
  }

  void display() {

    if(mode == 1) {
      // bind the fbo
      glBindFramebuffer(GL_FRAMEBUFFER, fboID);
      changeViewport(fboTexSize,fboTexSize);
    }
    glClearColor(0.5f, 0.5f, 0.5f, 1.0f);
    // render to attached fbo
    drawScene();

    if(mode == 1) {
      // unbind frame buffer
      glBindFramebuffer(GL_FRAMEBUFFER, 0);

      changeViewport(width, height);
      glClearColor(0.0f, 0.0f, 0.0f, 1.0f);
      glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);

      // using first render pass result as texture
      glEnable(GL_TEXTURE_2D);
      glBindTexture(GL_TEXTURE_2D, texID);

      // second render pass
      drawScene();

      glDisable(GL_TEXTURE_2D);
    }
  }

private:
  void changeViewport(int w, int h) {
    glViewport(0, 0, w, h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluPerspective (30.0, (float)w/(float)h, 0.1, 50.0);
  }

  void drawScene() {
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    // set camera
    gluLookAt(8.0, -2.0, 5.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
    // draw scene
    glRotatef(t, 0.0f, 0.0f, 1.0f);
    drawTexturedCube();
  }

  bool checkFramebufferStatus() {
    GLenum status;
    status = (GLenum) glCheckFramebufferStatus(GL_FRAMEBUFFER);
    switch(status) {
    case GL_FRAMEBUFFER_COMPLETE:
      return true;
    case GL_FRAMEBUFFER_INCOMPLETE_ATTACHMENT:
      printf("Framebuffer incomplete, incomplete attachment\n");
      return false;
    case GL_FRAMEBUFFER_UNSUPPORTED:
      printf("Unsupported framebuffer format\n");
      return false;
    case GL_FRAMEBUFFER_INCOMPLETE_MISSING_ATTACHMENT:
      printf("Framebuffer incomplete, missing attachment\n");
      return false;
    case GL_FRAMEBUFFER_INCOMPLETE_DRAW_BUFFER:
      printf("Framebuffer incomplete, missing draw buffer\n");
      return false;
    case GL_FRAMEBUFFER_INCOMPLETE_READ_BUFFER:
      printf("Framebuffer incomplete, missing read buffer\n");
      return false;
    }
    return false;
  }

  void drawTexturedCube() {

    glColor3f(1.0f,0.0f,0.0f);
    glBegin(GL_POLYGON);
    glTexCoord2f(0.00f,0.00f); glVertex3f(-1.0f, 1.0f, 1.0f);
    glTexCoord2f(1.00f,0.00f); glVertex3f(-1.0f,-1.0f, 1.0f);
    glTexCoord2f(1.00f,1.00f); glVertex3f( 1.0f,-1.0f, 1.0f);
    glTexCoord2f(0.00f,1.00f); glVertex3f( 1.0f, 1.0f, 1.0f);
    glEnd();
    glColor3f(1.0f,1.0f,0.0f);
    glBegin(GL_POLYGON);
    glTexCoord2f(0.00f,0.00f); glVertex3f(-1.0f, 1.0f,-1.0f);
    glTexCoord2f(1.00f,0.00f); glVertex3f(-1.0f,-1.0f,-1.0f);
    glTexCoord2f(1.00f,1.00f); glVertex3f(-1.0f,-1.0f, 1.0f);
    glTexCoord2f(0.00f,1.00f); glVertex3f(-1.0f, 1.0f, 1.0f);
    glEnd();
    glColor3f(0.0f,0.0f,1.0f);
    glBegin(GL_POLYGON);
    glTexCoord2f(0.00f,0.00f); glVertex3f( 1.0f, 1.0f, 1.0f);
    glTexCoord2f(1.00f,0.00f); glVertex3f( 1.0f,-1.0f, 1.0f);
    glTexCoord2f(1.00f,1.00f); glVertex3f( 1.0f,-1.0f,-1.0f);
    glTexCoord2f(0.00f,1.00f); glVertex3f( 1.0f, 1.0f,-1.0f);
    glEnd();
    glColor3f(1.0f,1.0f,1.0f);
    glBegin(GL_POLYGON);
    glTexCoord2f(0.00f,0.00f); glVertex3f(-1.0f, 1.0f,-1.0f);
    glTexCoord2f(1.00f,0.00f); glVertex3f(-1.0f, 1.0f, 1.0f);
    glTexCoord2f(1.00f,1.00f); glVertex3f( 1.0f, 1.0f, 1.0f);
    glTexCoord2f(0.00f,1.00f); glVertex3f( 1.0f, 1.0f,-1.0f);
    glEnd();
    glColor3f(0.0f,1.0f,1.0f);
    glBegin(GL_POLYGON);
    glTexCoord2f(0.00f,0.00f); glVertex3f(-1.0f, -1.0f, 1.0f);
    glTexCoord2f(1.00f,0.00f); glVertex3f(-1.0f, -1.0f,-1.0f);
    glTexCoord2f(1.00f,1.00f); glVertex3f( 1.0f, -1.0f,-1.0f);
    glTexCoord2f(0.00f,1.00f); glVertex3f( 1.0f, -1.0f, 1.0f);
    glEnd();
    glColor3f(0.0f,1.0f,0.0f);
    glBegin(GL_POLYGON);
    glTexCoord2f(0.00f,0.00f); glVertex3f( 1.0f, 1.0f,-1.0f);
    glTexCoord2f(1.00f,0.00f); glVertex3f( 1.0f,-1.0f,-1.0f);
    glTexCoord2f(1.00f,1.00f); glVertex3f(-1.0f,-1.0f,-1.0f);
    glTexCoord2f(0.00f,1.00f); glVertex3f(-1.0f, 1.0f,-1.0f);
    glEnd();
  }
};

Example: Rendering the Depth Buffer into a Texture

Source code of the example with GLUT: FboDepth.cpp
Source code of the example with Qt: FboDepth.cpp
Source code of the example with Java: FboDepth.java

Example: Rendering the Depth Buffer into a Texture

class Renderer {
public:
  float t;
  int mode;
private:
  GLuint fboID;
  GLuint depthID;
  int fboTexSize;
  int width;
  int height;
public:
  // constructor
  Renderer() : t(0.0), mode(1),
               fboID(0), depthID(0),
               fboTexSize(512), width(0), height(0) {}

  // destructor
  ~Renderer() {
    if(fboID !=0) glDeleteFramebuffers(1, &fboID);
    if(depthID != 0) glDeleteTextures(1, &depthID);
  }

public:
 void init() {
    glEnable(GL_DEPTH_TEST);

    // create a frame buffer object
    glGenFramebuffers(1, &fboID);

    // bind the frame buffer
    glBindFramebuffer(GL_FRAMEBUFFER, fboID);

     // Generate depth render texture
    glGenTextures (1, &depthID);
    glBindTexture(GL_TEXTURE_2D, depthID);

    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_MIN_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_MAG_FILTER, GL_LINEAR);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
    glTexParameteri(GL_TEXTURE_2D,
                    GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
    int level = 0;
    glTexImage2D(GL_TEXTURE_2D, level, GL_DEPTH_COMPONENT,
                 fboTexSize, fboTexSize, 0, GL_DEPTH_COMPONENT,
                 GL_FLOAT, NULL);
    glTexEnvf(GL_TEXTURE_ENV, GL_TEXTURE_ENV_MODE, GL_REPLACE);


    // Attach the texture to the fbo
    glFramebufferTexture2D(GL_FRAMEBUFFER,
                           GL_DEPTH_ATTACHMENT,
                           GL_TEXTURE_2D, depthID, level);
    if(!checkFramebufferStatus()) exit(1);

    // unbind texture
    glBindTexture(GL_TEXTURE_2D, 0);
    //unbind fbo
    glBindFramebuffer(GL_FRAMEBUFFER, 0);
  }

  void resize(int w, int h) {
    width = w;
    height = h;
    changeViewport(w, h);
  }

  void display() {

    if(mode > 0) {
      // bind the fbo
      glBindFramebuffer(GL_FRAMEBUFFER, fboID);
      changeViewport(fboTexSize,fboTexSize);
    }else{
      changeViewport(width, height);
    }

    glClearColor(0.0f, 0.0f, 0.0f, 1.0f);
    // render to attached fbo
    drawScene();

    if(mode == 1) {
      // unbind frame buffer
      glBindFramebuffer(GL_FRAMEBUFFER, 0);

      changeViewportOrtho(width, height);

      // using first render pass result as texture
      glEnable(GL_TEXTURE_2D);
      glBindTexture(GL_TEXTURE_2D, depthID);

      //draw quad with depth texture
      glColor3f(1.0f,0.0f,0.0f);
      glBegin(GL_POLYGON);
      glTexCoord2f(0.00f,0.00f); glVertex3f(-1.0f,-1.0f, 0.0f);
      glTexCoord2f(1.00f,0.00f); glVertex3f( 1.0f,-1.0f, 0.0f);
      glTexCoord2f(1.00f,1.00f); glVertex3f( 1.0f, 1.0f, 0.0f);
      glTexCoord2f(0.00f,1.00f); glVertex3f(-1.0f, 1.0f, 0.0f);
      glEnd();

      glDisable(GL_TEXTURE_2D);
    }
  }

private:
  void changeViewport(int w, int h) {
    glViewport(0, 0, w, h);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    gluPerspective (30.0, (float)w/(float)h, 7.0, 12.0);
  }

  void changeViewportOrtho(int w, int h) {
    float aspect = (float)w/(float)h;
    glViewport(0, 0, width, height);
    glMatrixMode(GL_PROJECTION);
    glLoadIdentity();
    glOrtho(-1.0*aspect, 1.0*aspect, -1.0, 1.0, -1.0, 1.0);
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
  }


  void drawScene() {
    glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);
    glMatrixMode(GL_MODELVIEW);
    glLoadIdentity();
    // set camera
    gluLookAt(8.0, -2.0, 5.0, 0.0, 0.0, 0.0, 0.0, 0.0, 1.0);
    // draw scene
    glRotatef(t, 0.0f, 0.0f, 1.0f);
    drawTexturedCube();
  }
...
};

Are there any questions?

Please notify me by e-mail if you have questions, suggestions for improvement, or found typos: Contact

Graphics ProgrammingTextures

Control Keys

Notation

2D Textures

2D Textures

2D Textures

Texture Mapping

Textures in the OpenGL-Pipeline

Textures in the OpenGL-Pipeline

Textures in the OpenGL Pipeline

Creating 2D Textures in OpenGL

Activating 2D Textures in OpenGL

Example: Texturing a Cube

Example: Texturing a Cube in OpenGL

Example: Texturing a Cube in OpenGL

Wrap Parameter

Filter Parameters

Filter Parameter

Bilinear Interpolation

Bilinear Interpolation

Mipmaps

Mipmaps

Mipmaps in OpenGL

Texture Parameters and Mip-Mapping in OpenGL

Texture Parameters and Mip-Mapping in OpenGL

Effect of the Texture

Effect of the Texture

Example: Blending of Two Textures in OpenGL

Automatic Generation of Texture Coordinates

Box Mapping

Cylinder Mapping

Sphere Mapping

3D Textures

3D Textures

3D Textures in OpenGL

Example: Texturing a Random Terrain

Example: Texturing a Random Terrain

Texture Units

OpenGL Texture Mapping from an Object-Oriented View

Framebuffer Objects

Framebuffer Objects

Creating Framebuffer Objects

2D Textures as a Data Storage

Renderbuffer Objects as a Data Storage

Example: Rendering the Scene to a Texture

Example: Rendering the Scene to a Texture

Example: Rendering the Depth Buffer into a Texture

Example: Rendering the Depth Buffer into a Texture

Are there any questions?

Graphics Programming
Textures
